Loading Platform

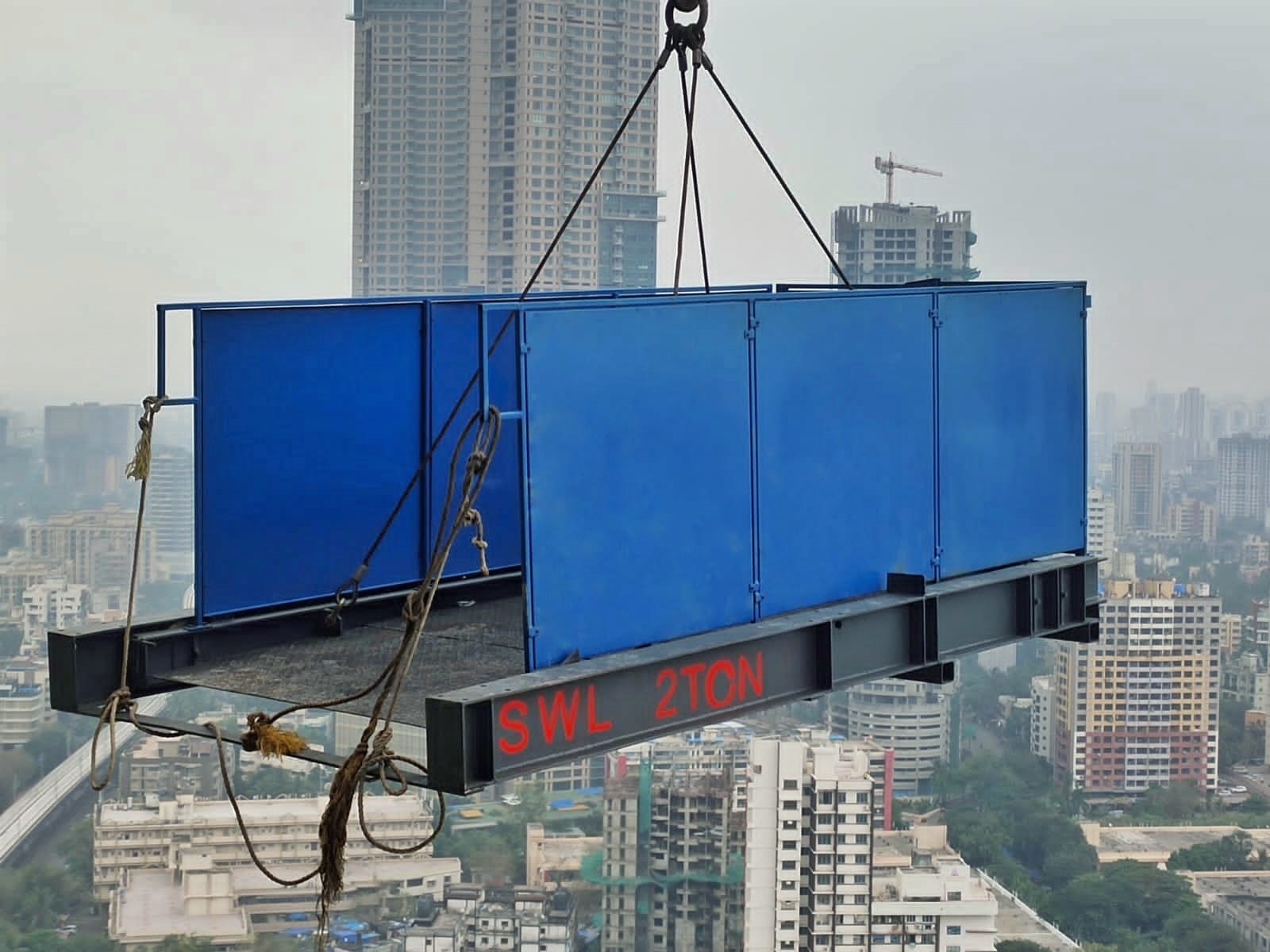

Loading Platforms are used on Construction Sites for Easy Material Shifting and Transfer at Different Levels of the Building instead using Lift or Manual Labour

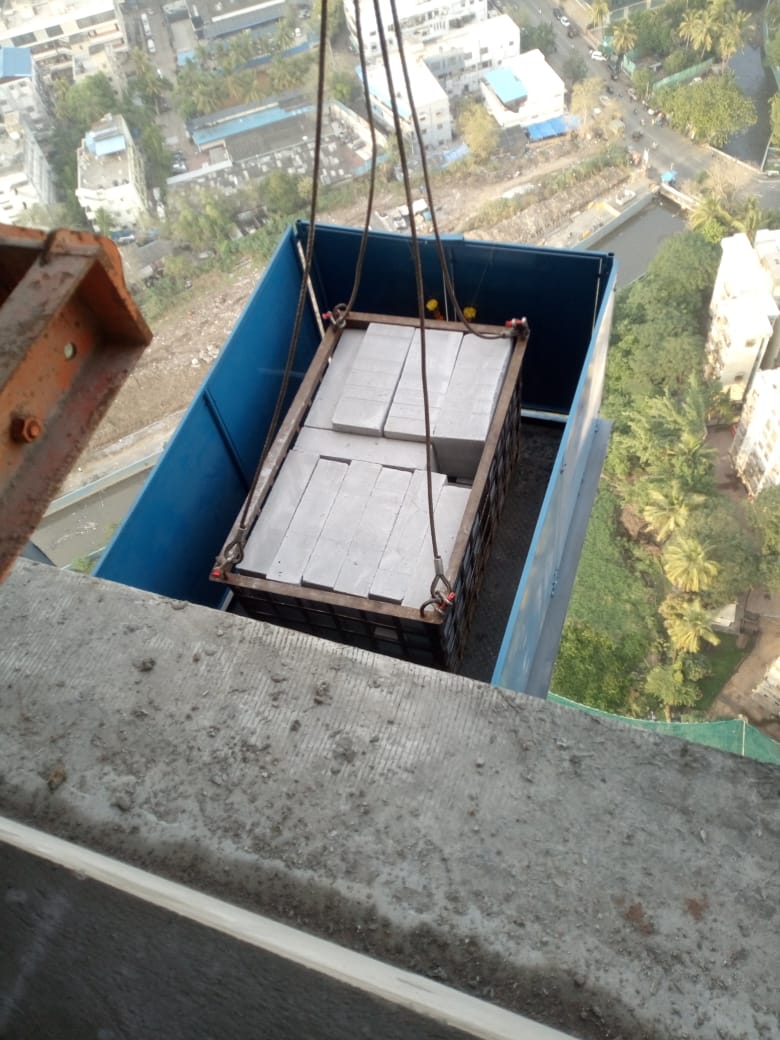

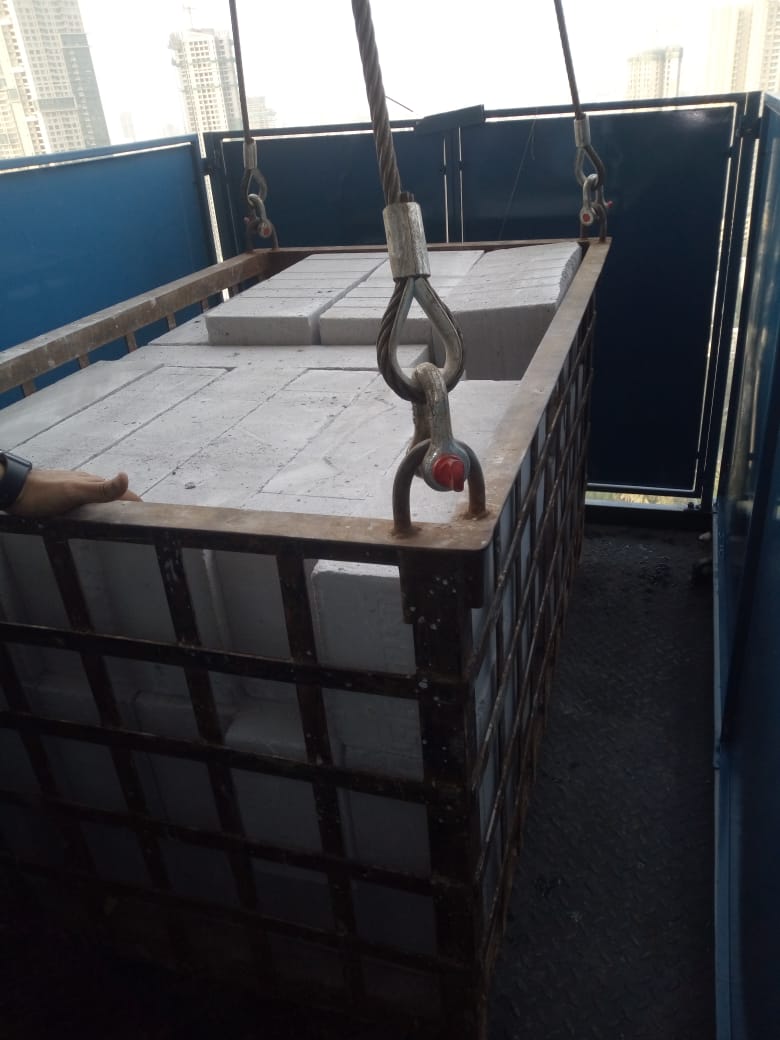

Heavy and Large Building Material, Marble, Pipes, Scaffolding Material, MEP Equipment can be easily shifted to Higher Level easily using Loading Platform
There are two types of Loading Platform Design
Fixed Loading Platform
Retractable Loading Platform

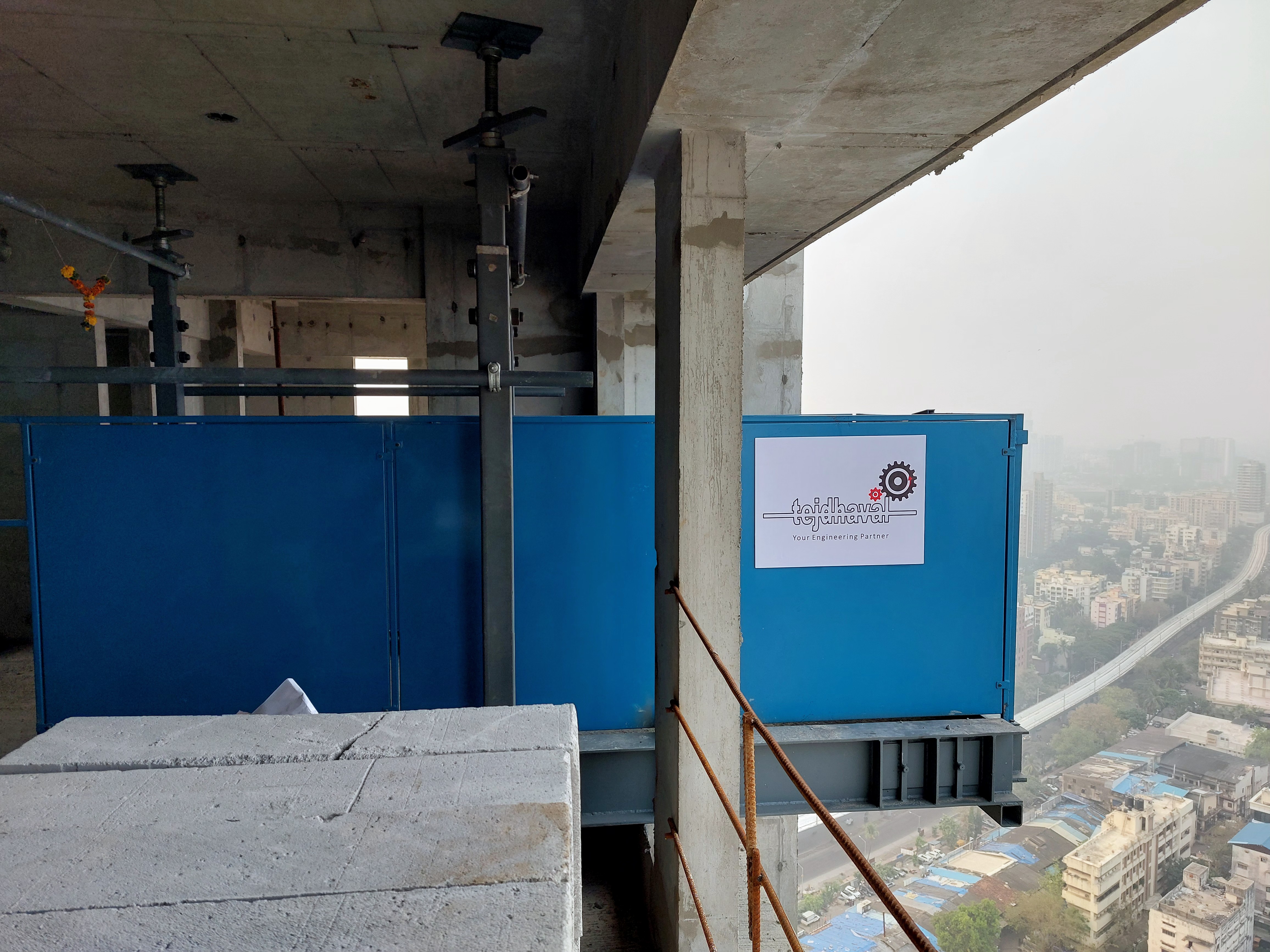

Loading Platforms are fast and easy for Assembly, Installation and Relocation, safe and flexible to use, suitable for the buildings under tower crane construction, therefore it is a piece of indispensable material-transferring equipment for modern high-rise buildings' construction.

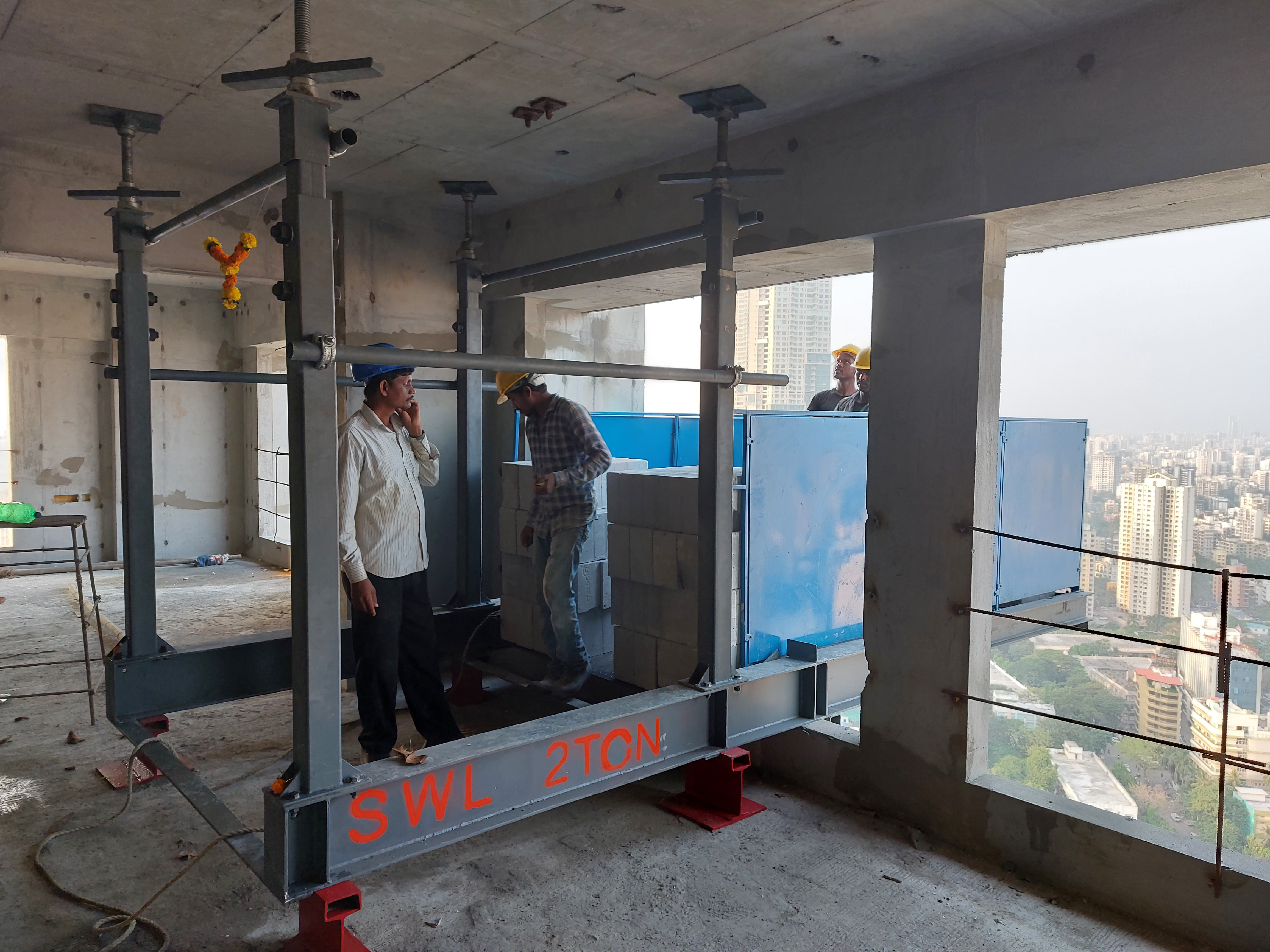

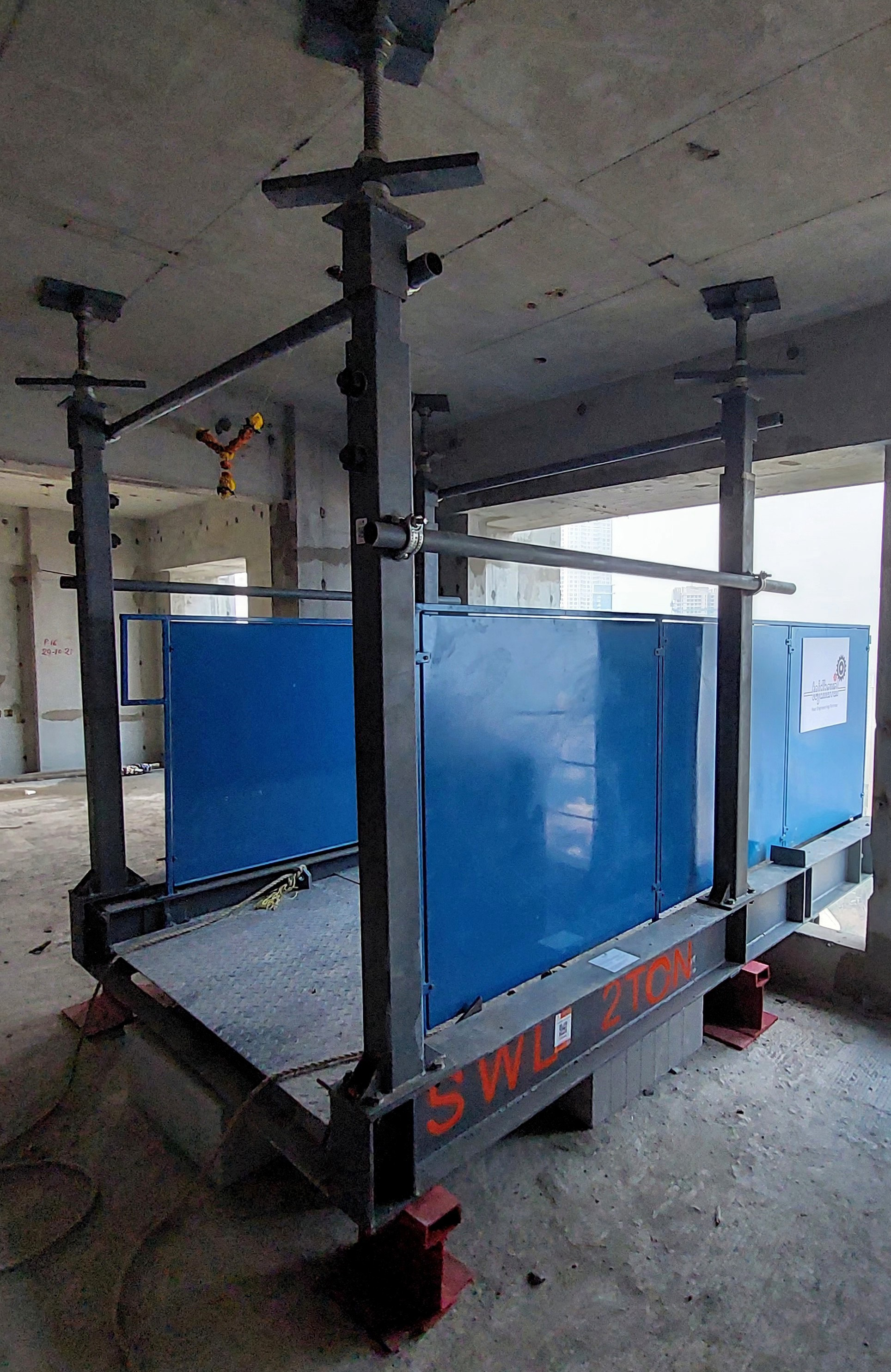

Integral parts of Loading Platform are Fixed Frame, Retractable Platform, Guard Rail, Safety Door and Adjustable Props.
Benefits
Significantly reduces Labour Cost for Material Shifting
Fast Movement of Material to higher Floors
Free up Lift Time
Safe and efficient loading and off-loading of material on-site reducing crane time
Improved Site Safety
Simple to Operate and requires One person to retract or extend the platform
Available up to 5 Ton Capacity
Designed & Manufactured for Safe and Designated Load Capacity
Can be designed as per Site Specific Requirement
MakeInIndia Product
|
Load Capacity
MT
|
Length
M
|
Width
M
|
|
1
|
2
|
1.8
|
|
1.5
|
2.5
|
2.1
|
|
2
|
3
|
2.7
|
|
2.5
|
3
|
3
|
|
3
|
3.5
|
3
|
|
4
|
4
|
3.5
|
|
5
|
5
|
4
|
These are Standard Dimensions and same can be customized as per Site Specific Requirement
